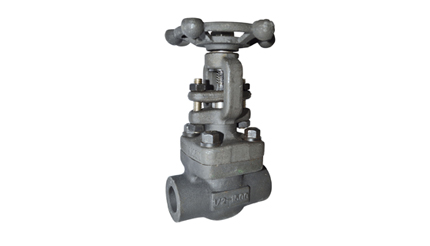

ECOLINE GTF 800-2500

Design
Gate valve designed to ANSI/ASME. Forged steel A105 trim 8 (stellite / 13 % Cr). Pressure/temperature ratings to ASME B16.34. Threaded ends (NPT) to ASME B1.20.1. Socket weld ends (SW) to ASME B 16.11. Testing to API 598. Bolted bonnet. Outside screw and yoke. Non-rotating stem, solid wedge. Graphite
packing. Stainless steel and graphite gaskets. Reduced bore.
Applications
Industrial plants, power stations, process engineering, refineries, oil and marine engineering; for water, steam, gas, oil and other non-aggressive fluids.



  •
Overview of technical data
Bonnet design Yoke
Class(es) 800; 1500;2500
Maximum temperature 816 002
Body/bonnet seal element Internally and externally confined seal
Valve disc/plug material Metal- to-metal seat
Size(s) (NPS) 1/ 2" - 2"
Threaded-end design butt weld end design; Internal thread;Socket weld end
Stem sealing Gland packing
Body design Straight pattern body
Body material Forged steel
Certification ASME B16. 34, API 602
Main applications Industry and process engineering; Energy;Oil / Gas
Actuator position feedback No
