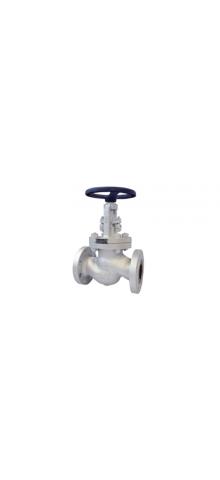

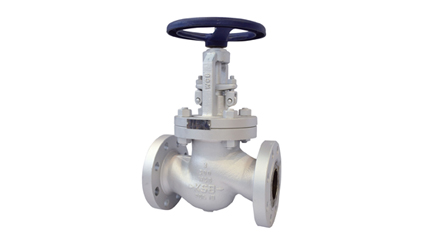

ECOLINE GLC 150-600

Design
Globe valve designed to BS 1873. Cast steel A216 WCB, trim 8 (stellite/13%Cr) for class 150/300/600, trim 5 (stellite/stellite) for class 600. Pressure/temperature rating to ASME B16.34. Face-to-face length to ASME B16.10. Flange dimensions to ASME B16.5. Testing to API 598. Bolted bonnet. Outside screw and yoke. Graphite packing. Stainless steel / graphite gaskets.
Application
Refineries, power stations, process engineering and general industry; water, steam, oil, gas. Other applications on request

Overview of technical data
Bonnet design Yoke
Class(es) 150; 300;600
Maximum temperature 816 002
Body/bonnet seal element Internally and externally confined seal
Valve disc/plug material Metal- to-metal seat
Size(s) (NPS) 2' ' - 12'
Threaded-end design Flange design
Stem sealing Gland packing
Body design Straight pattern body
Body material Cast steel
Actuator options available ex works Electric actuator to customer' s choice
Main applications Industry and process engineering; Energy;Oil / Gas
