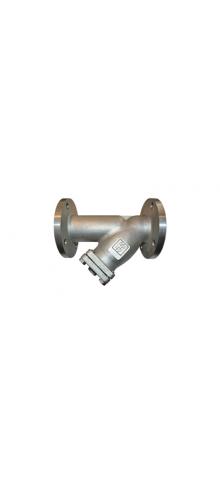

ECOLINE FYC 150 -600

Design
Y-pattern strainer designed to ANSI/ASME. Cast steel A216 WCB. Pressure/temperature rating to ASME B16.34. Face-to-face length to ASME B16.10. Flange dimensions to ASME B16.5. Testing to API 598. Screen in stainless steel 304. Mesh width 1.5 mm. Bolted cover.
Application
Refineries, power plants, process engineering and general industry; water, steam, oil, gas. Other applications on request.


Overview of technical data

Class(es)                          150; 300;600
Maximum temperature          816 °C
Size(s) (NPS)                          2" - 12"
Threaded-end design          Flange design
Body material                  Cast steel
