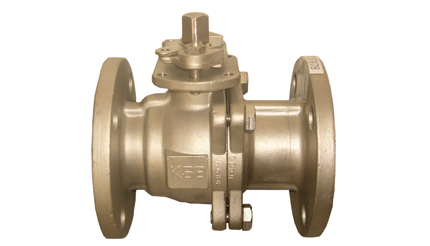

ECOLINE BLT 150-300

Design
2-piece body, full bore, floating ball concept, flanged (RF), plastomer sealing (also in fire-safe variant). With lever or gearbox, pneumatic or electric actuator. Design as per ASME B 16.34.
Application
General industry, power stations, chemical and petrochemical industry and all associated branches of industry. Paper industry, food industry, pharmaceutical industry.



  •
  • Overview of technical data
  • Class(es)                                              150; 300
  • Maximum temperature                     200 002
  • DN max.                                              300
  • DN min.                                              8
  • Size(s) (NPS)                                      1/ 2'' - 8''
  • Threaded-end design                      00; Flange design
  • Body material                                      Cast steel; Cast stainless steel
  • Body material(s) (ASTM standard)      12; CF8;WCB
  • PN max.                                              63
  • Main applications                              Industry and process engineering; Oil / Gas;Shipping / Shipbuilding
  •
